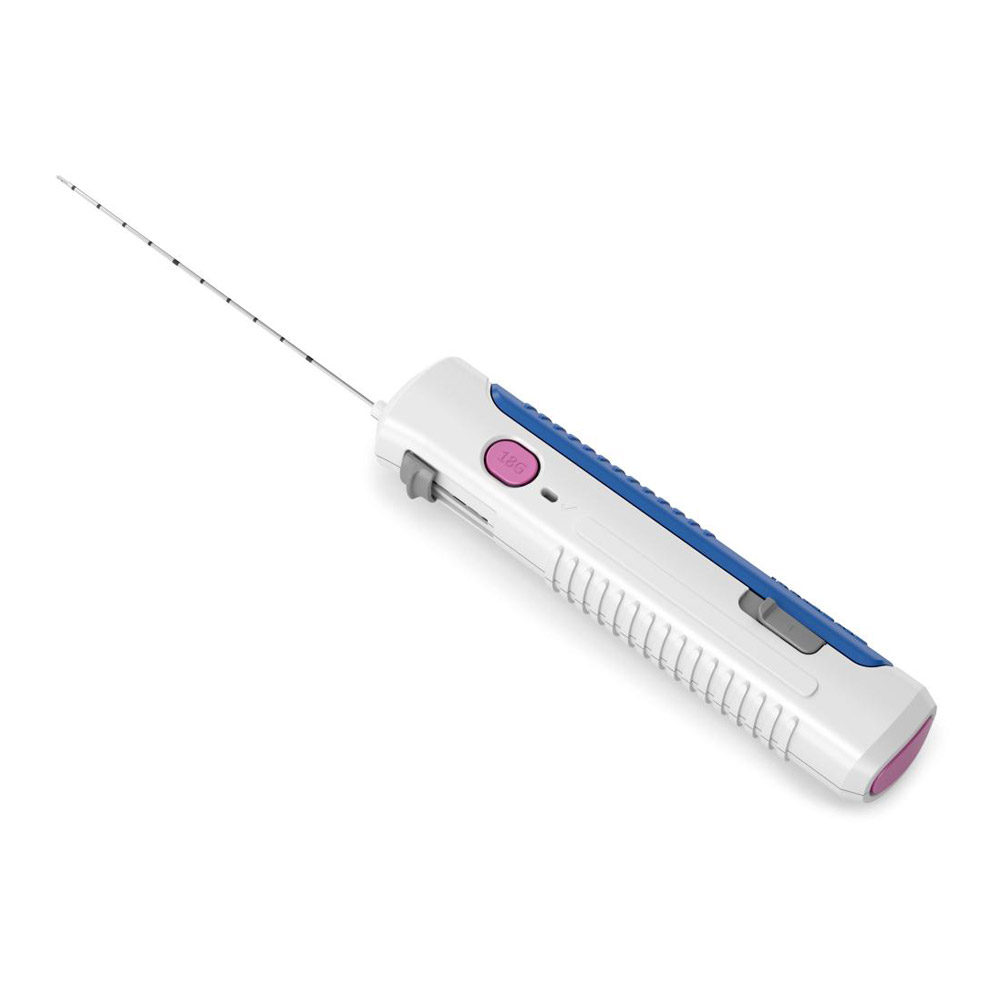

BioPince™ Ultra
Full Core Biopsy Instrument
BioPince™ Ultra Full Core Biopsy Instrument is the next generation of full core biopsy technology. Coaxial Cannula Bundle Packaged with a sharp and blunt stylet for use with BioPince Ultra Biopsy Instrument.

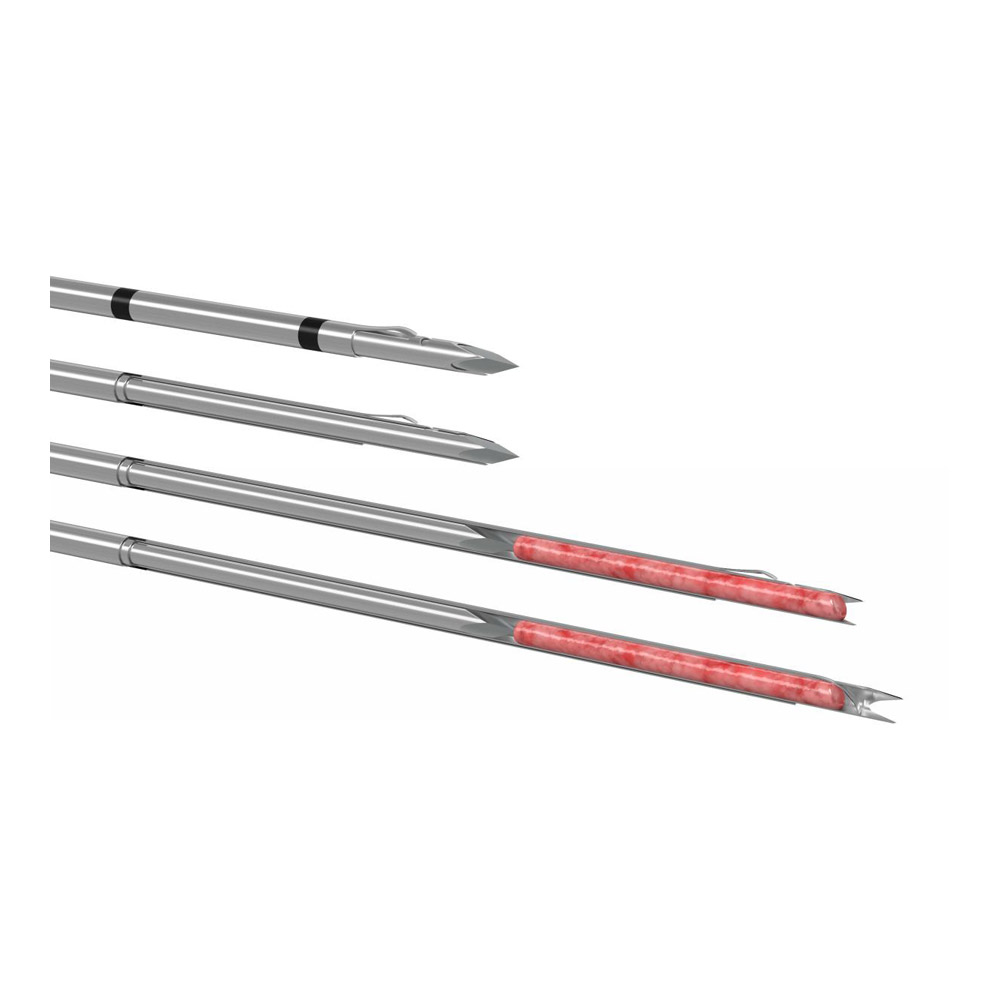

- Designed to capture a full core specimen using tri-axial core cut and capture system to harvest diagnostic quality specimens
- Reducing risk of crush artifact and tissue fragmentation
- Variable throw lengths enhance clinical flexibility: 13mm throw yields 9mm specimen length, 23mm throw yields 19mm specimen length, 33mm throw yields 29mm specimen length
- Green ready indicator
- Forward trigger for flexibility in approach
- Centimeter markings provide reference for depth placement
- Color-coded rear trigger for gauge indentification
- Can be used with optional echogenic co-axial introducer needles
- Better glomerular yield within 16G BioPince instrument compared to a 14G tru-cut needle
| Catalog Number | Description | Size | Length | Units per Box | Optional Co-Axial Needle | Co-Axial Gauge | Co-Axial Size | Compatible Device |
|---|---|---|---|---|---|---|---|---|
| 360-1080-02 | BioPince Ultra(R) Full Core Biopsy Device | 18G | 10cm | 5 | MCXS1810BP or MCXS1810BPU | |||
| 360-1080-03 | BioPince Ultra(R) Full Core Biopsy Device w/ Co-Axial Introducer Needle | 18G | 10cm | 5 | 17G | 6.8cm | ||
| 360-1580-02 | BioPince Ultra(R) Full Core Biopsy Device | 18G | 15cm | 5 | MCXS1815BP or MCXS1815BPU | |||
| 360-1580-03 | BioPince Ultra(R) Full Core Biopsy Device w/ Co-Axial Introducer Needle | 18G | 15cm | 5 | 17G | 11.8cm | ||
| 360-2080-02 | BioPince Ultra(R) Full Core Biopsy Device | 18G | 20cm | 5 | MCXS1820BP or MCXS1820BPU | |||
| 360-2080-03 | BioPince Ultra(R) Full Core Biopsy Device w/ Co-Axial Introducer Needle | 18G | 20cm | 5 | 17G | 16.8cm | ||
| 370-1080-02 | BioPince Ultra(R) Full Core Biopsy Device | 16G | 10cm | 5 | MCXS1610BP or MCXS1610BPU | |||
| 370-1080-03 | BioPince Ultra(R) Full Core Biopsy Device w/ Co-Axial Introducer Needle | 16G | 10cm | 5 | 14G | 6.8cm | ||
| 370-1580-02 | BioPince Ultra(R) Full Core Biopsy Device | 16G | 15cm | 5 | MCXS1615BP or MCXS1615BPU | |||
| 370-1580-02 | BioPince Ultra(R) Full Core Biopsy Device w/ Co-Axial Introducer Needle | 16G | 15cm | 5 | 14G | 11.8cm | ||
| MCXB1610BP | Co-Axial Cannula Bundle | 15G | 16.8 cm | 370-1080-02 | ||||
| MCXB1610BPU | Co-Axial Cannula Bundle | 14G | 16.8 cm | 370-1080-02 | ||||
| MCXB1615BP | Co-Axial Cannula Bundle | 15G | 11.8cm | 370-1580-02 | ||||
| MCXB1615BPU | Co-Axial Cannula Bundle | 14G | 11.8cm | 370-1580-02 | ||||
| MCXB1810BP | Co-Axial Cannula Bundle | 17G | 6.8cm | 360-1080-02 | ||||
| MCXB1810BPU | Co-Axial Cannula Bundle | 16G | 6.8cm | 360-1080-02 | ||||
| MCXB1815BP | Co-Axial Cannula Bundle | 17G | 11.8cm | 360-1580-02 | ||||
| MCXB1815BPU | Co-Axial Cannula Bundle | 16G | 11.8cm | 360-1580-02 | ||||
| MCXB1820BP | Co-Axial Cannula Bundle | 17G | 16.8cm | |||||
| MCXB1820BPU | Co-Axial Cannula Bundle | 16G | 16.8cm | |||||
| MCXB1610BP | Echogenic Co-Axial Introducer Needles | 15G | 6.8cm | 5 | 370-1080-02 | |||
| MCXB1610BPU | Echogenic Co-Axial Introducer Needles | 14G | 6.8cm | 5 | 370-1080-02 | |||
| MCXB1615BP | Echogenic Co-Axial Introducer Needles | 15G | 11.8cm | 5 | 370-1580-02 | |||
| MCXB1615BPU | Echogenic Co-Axial Introducer Needles | 14G | 11.8cm | 5 | 370-1580-02 | |||
| MCXB1810BP | Echogenic Co-Axial Introducer Needles | 17G | 6.8cm | 5 | 360-1080-02 |
Not all SKUs available in every region
