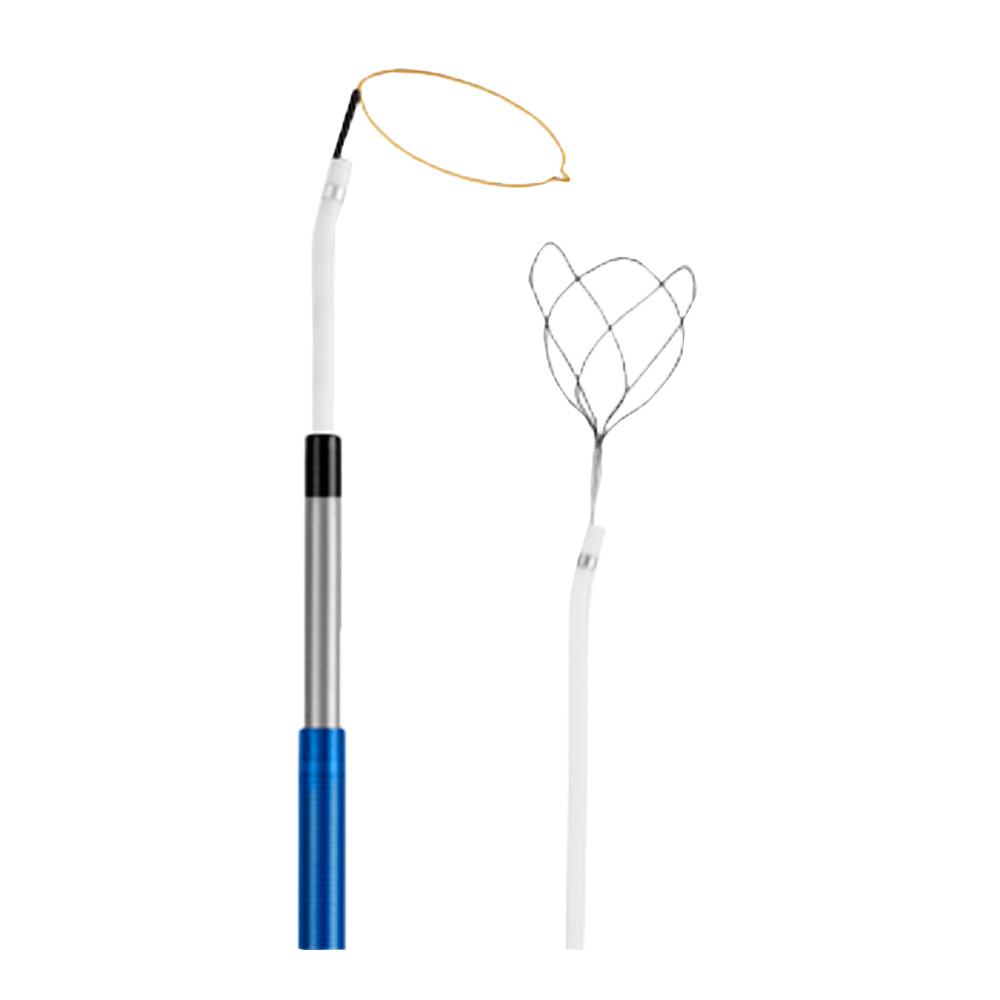

Single-loop and Triple-loop Retrieval Kit

With a rigid sheath, enhanced visualization, hemostatic control and two snare options, Argon’s Single-Loop and Triple-Loop Retrieval Kits are designed with the rigor of the IVC filter retrieval procedure in mind.

Key Product Attributes
  • Coil-reinforced outer sheath for strength to detach filter legs from the IVC wall
  • 15° curve at the distal tip of the snare catheter allows for directional control
  • Radiopaque bands on the snare catheter, inner sheath, and outer sheath increase visibility for control when capturing and sheathing over the IVC filter. Embedded radiopaque marker increases visibility for sheathing over filter legs.
  • Three independent loops for complete vessel coverage (Triple-Loop)
  • Platinum strands (Triple-Loop) or gold-plated tungsten loop (Single-Loop) for visibility when snaring retrieval hook
  • Nitinol wire allows for 1:1 torque control and kink resistance
  • Holes around the distal tip of the dilator for even distribution of contrast during power injection
Product Resources

Retrieval Kit User Guide
Retrieval Kit Brochure
Single- and Triple-loop Retrieval Kit Brochure
Retrieval Kit IFU

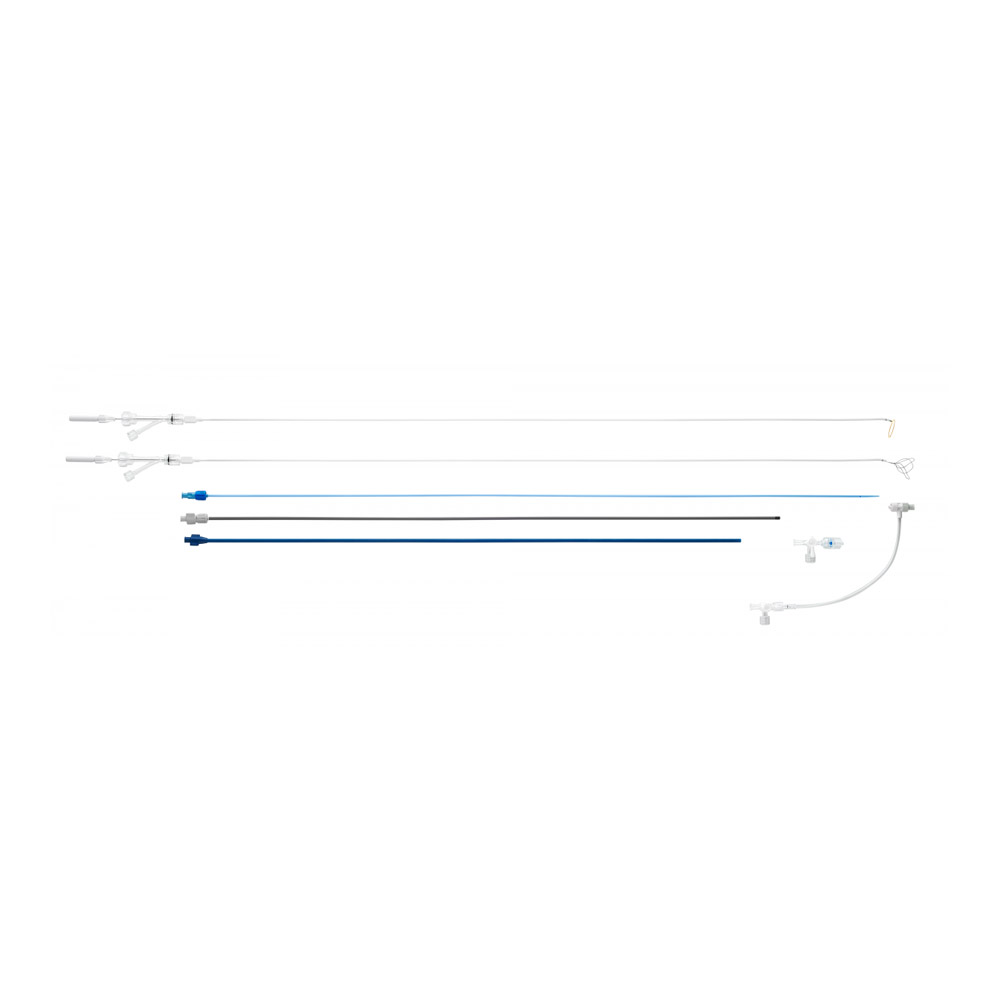

What’s Included In Each Kit?

11F (ID) x 60cm Outer Sheath
9F (ID) x 64cm Inner Sheath
8F (OD) x 75cm Dilator
Hemostasis Valve with Sideport
3-Way High Pressure Stopcock

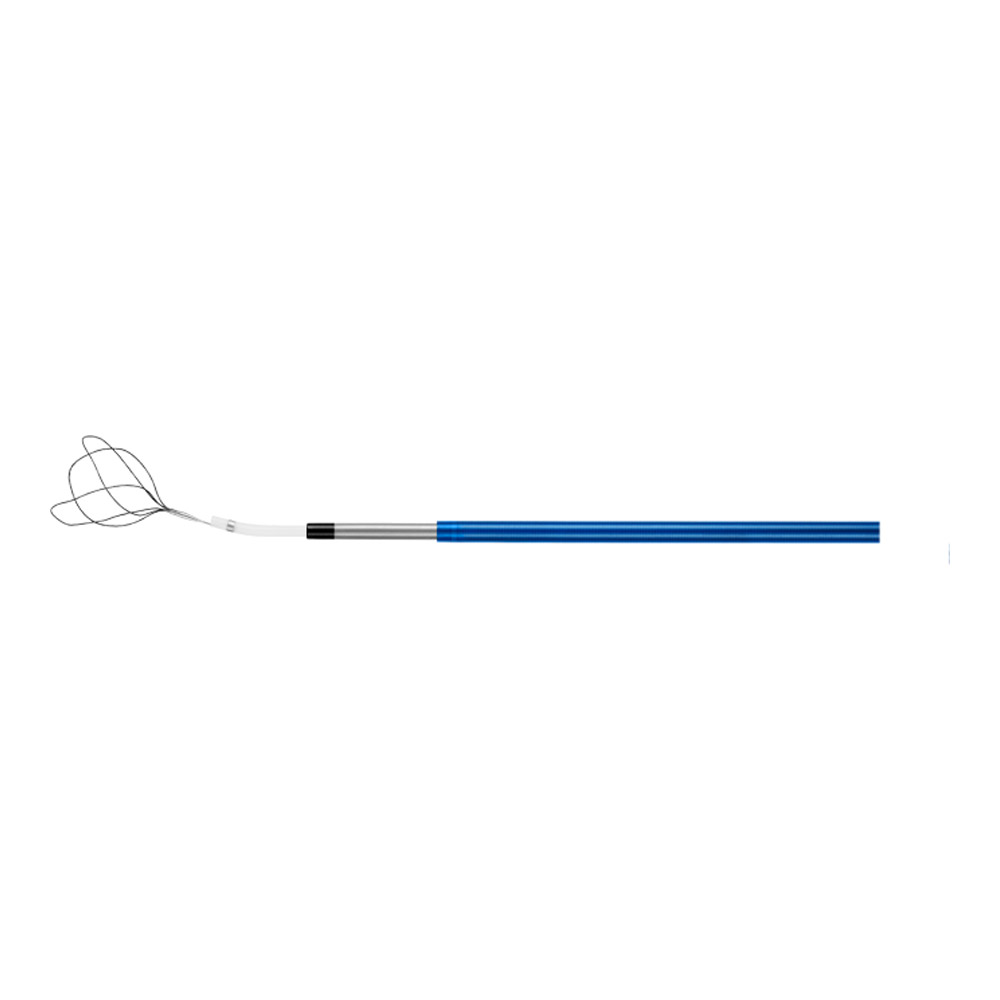

(Triple Loop) 7F (OD) x 76cm Snare Catheter with Tuohy-Borst Y-Port Adapter, 30mm x 93cm Triple-Loop Snare with Torque Handle

Or

11F (ID) x 60cm Outer Sheath
9F (ID) x 64cm Inner Sheath
8F (OD) x 75cm Dilator
Hemostasis Valve with Sideport
3-Way High Pressure Stopcock

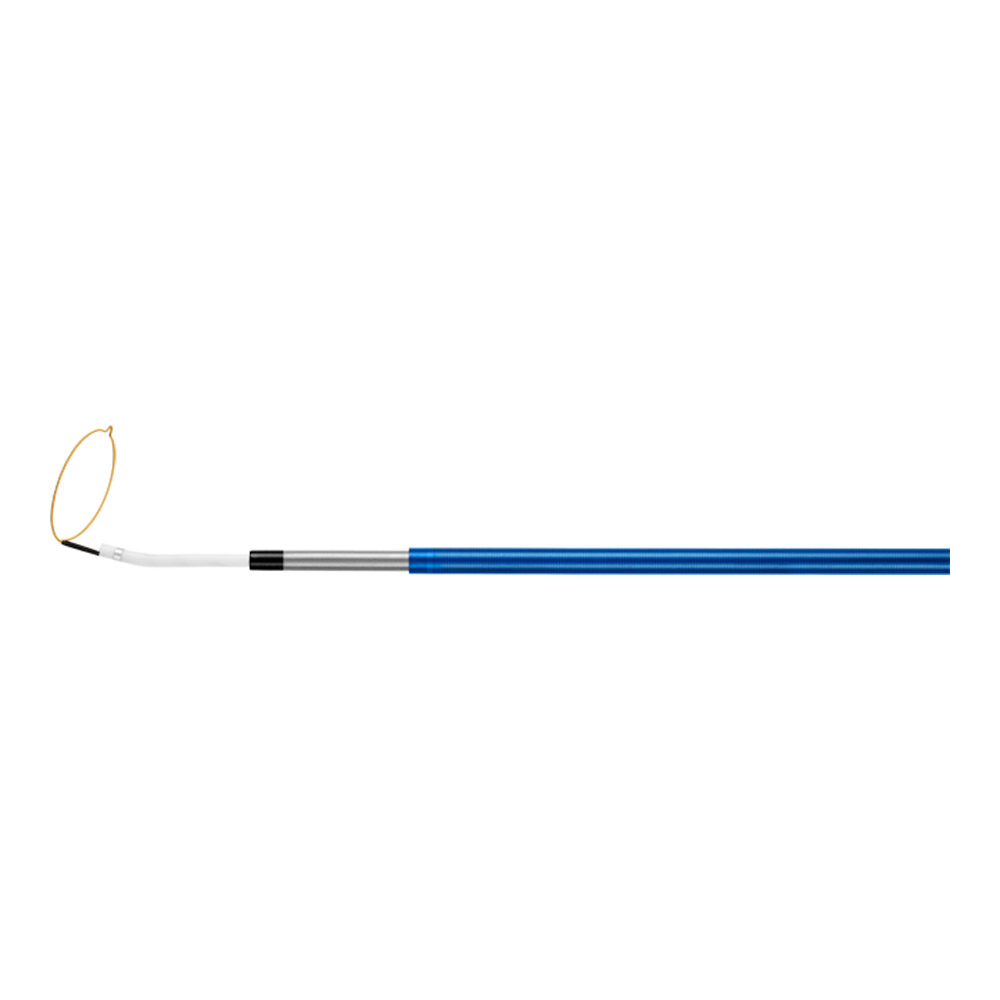

(Single Loop) 7F (OD) x 76cm Snare Catheter with Tuohy-Borst Y-Port Adapter, 20mm x 93cm Single-Loop Snare with Torque Handle

Catalog NumberProduct DetailsAdd to Cart
380911120

Inner Sheath: 9F (ID) x 64cm
Outer Sheath: 11F (ID) x 60cm
Snare Catheter: 7F (OD) x 76cm

380911330

Inner Sheath: 9F (ID) x 64cm
Outer Sheath: 11F (ID) x 60cm
Snare Catheter: 7F (OD) x 76cm
